DB76 HF Straight Seam Welded Tube Mill Line

Short Description:


  • Brand: Dingbo
  • Certification: CE ISO SGS
  • Warranty : 2years
  • After-sales Service : Technical support full lifetime
  • Min. Order Qty: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Shanghai
  • Payment Terms: T/T,L/C
  • Delivery Time: 30-60days after deposit
  • Packaging Details: Standard export packing
  • Product Detail

    Product Tags

    Short Description

    The tube production machine/welded pipe roll forming machine is intended for manufacturing of high frequency straight seam welding tube , square tube and special shapes tube of Φ20mm-Φ76mm with thickness of 1.0mm-4.0mm. The production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Equipment from the material to tube run out, the speed adjusts according to the tube specification changing. This is tube and pipe roll forming automatic welding pipe production line.

    Working Flow

    Slit Coil —- Un-Coiler —- Shearing And Butter Welder —- Storage/ Accumulator —- Forming —- Welding —- Cooling —- Sizing —- Cutting Saw —- Run Out Table —- Finishing —- Pipe Collecting and Packaging

    Main Parameter

    Raw material Hot rolled steel, cold rolled steel, galvanized steel
    Round tube outer diameter 20-76mm
    Wall thickness Round tube 1.0-4.0mm
    Square tube 10×10-50×50, etc
    Rectangular tube 10×60, etc
    Width of strip steel 60-240mm
    Tube welding speed 20-100m/min
    High frequency welder 80kW


    Main Feature

    High frequency straight seam tube mill is intended for manufacturing of high frequency straight seam welding tube , square tube and special shapes tube. The production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Including equipment s from decoiler to run out table, the speed adjusts according to the tube specification changing.

    tube

    spiral accumulation storage2

    Tube Application

    Tube mill is mainly used for producing pipes for furniture industry, construction industry, home appliances. The machine can produce round tube, square tube, rectangular tube, oval tube ect. It also can produce half pipe, plum pipe and different shaped tube. Main applications including:

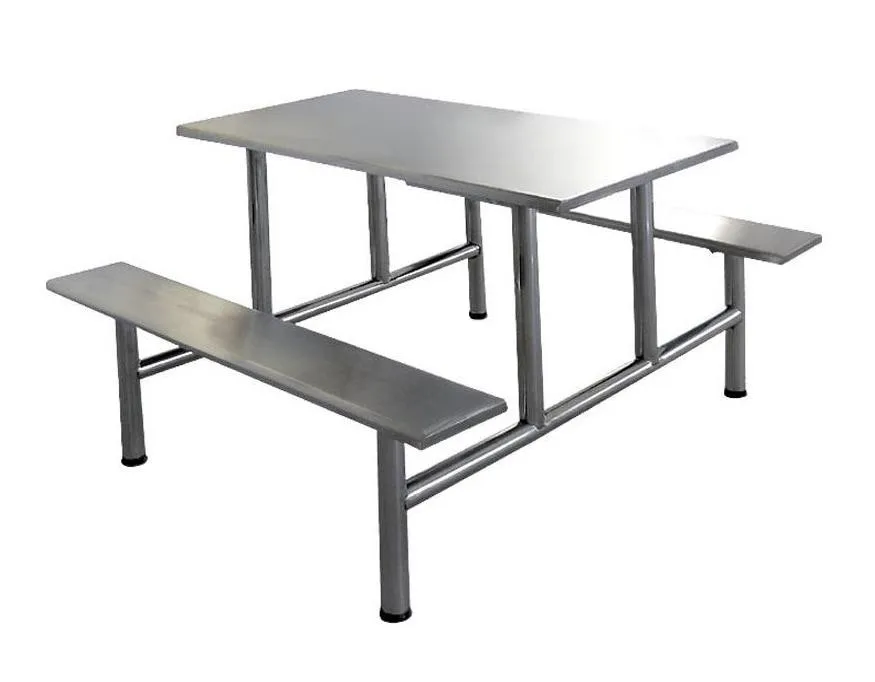

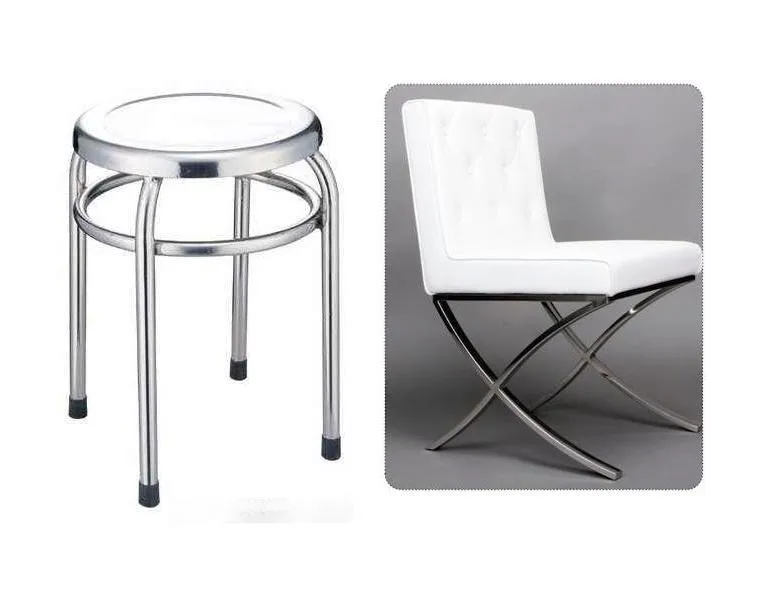

    ● Furniture industry: Steel table tubes, Steel chair tubes, Steel bed tubes, Steel towel racks, etc.

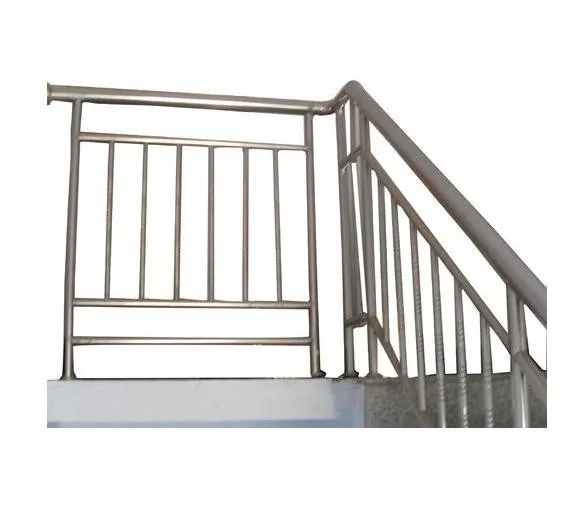

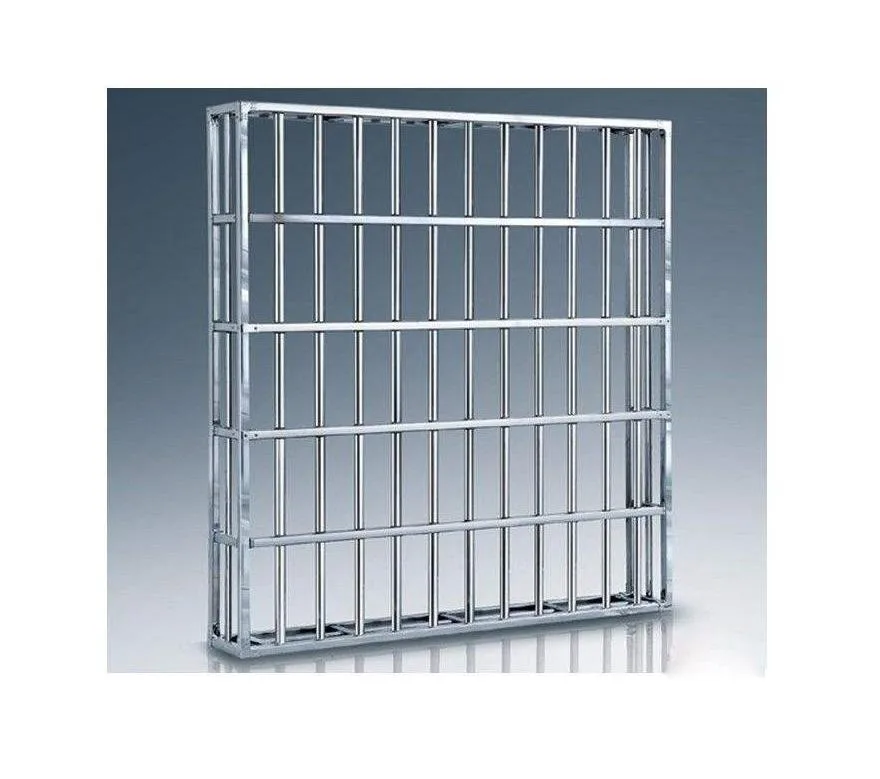

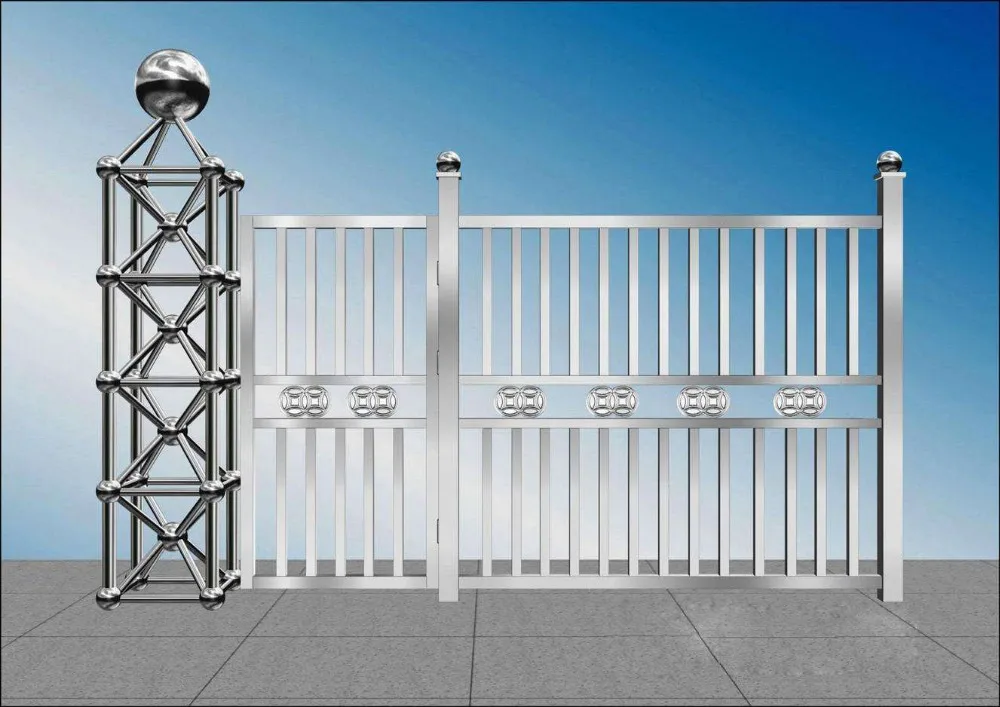

    ● Construction industry: Steel guardrail, steel door, steel handrail and steel window, etc.

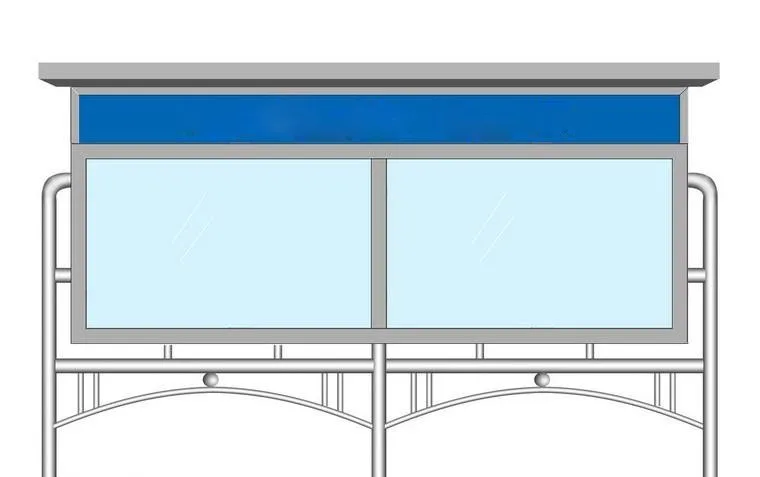

    ● Public facility industry: Flagpoles, outdoor sports equipment, bus and metro handrails, etc.
